Auto Wheel Bolt Pattern: What It Is and Why It Matters for Your Vehicle

auto wheel bolt pattern

If you’re planning to upgrade your wheels, replace damaged rims, or simply want to understand your car better, one technical term you’ll likely encounter is the auto wheel bolt pattern. It might sound like a small detail, but the bolt pattern is one of the most critical factors in making sure your wheels fit your vehicle safely and securely.

In this article, we’ll break down everything you need to know about the auto wheel bolt pattern—from what it is and how it’s measured to why it matters when buying new wheels or rims. Whether you’re a seasoned gearhead or a casual driver just looking to replace your tires, understanding this concept can save you money, time, and frustration.

What is an Auto Wheel Bolt Pattern?

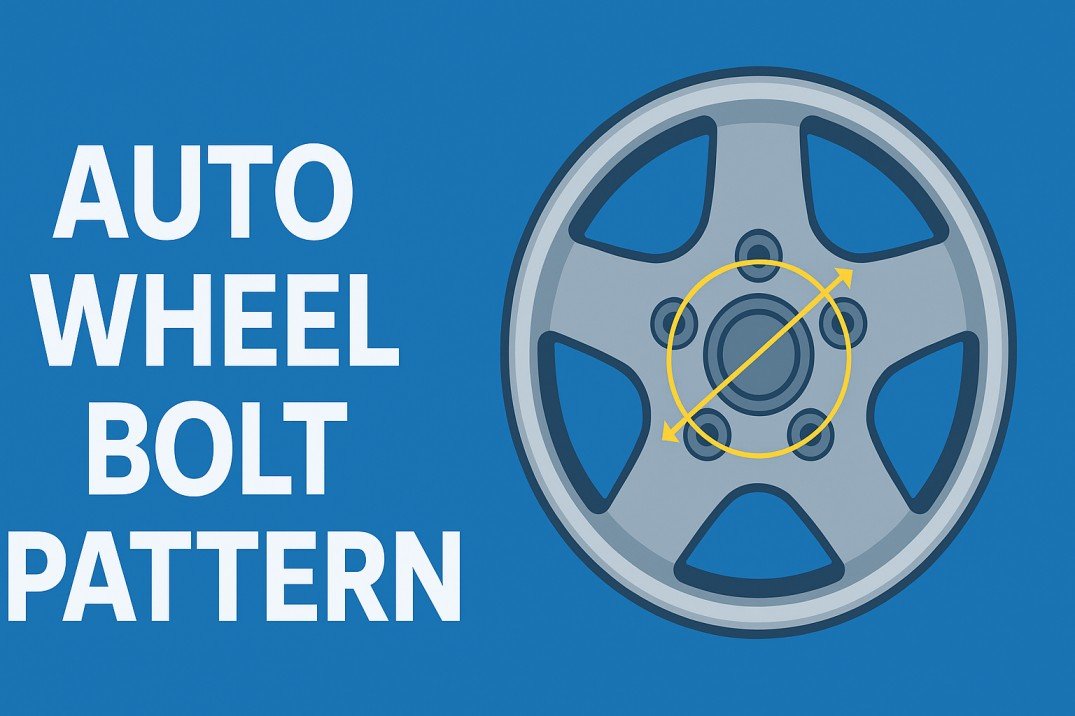

The auto wheel bolt pattern (also known as a lug pattern or bolt circle) refers to the layout of the bolts (or lugs) used to attach a wheel to your vehicle’s hub. Specifically, it describes two things:

The number of lug holes (usually 4, 5, 6, or 8)
The diameter of the circle those holes form, measured in millimetres or inches

For example, a bolt pattern of 5×114.3 means the wheel has 5 lug holes, and they form a circle with a diameter of 114.3mm.

Why Is the Bolt Pattern Important?

The auto wheel bolt pattern is not a one-size-fits-all measurement. Even if a wheel looks like it fits, if the bolt pattern doesn’t match your vehicle’s hub, it won’t bolt on properly—or safely.

Here’s why it matters:

Safety: Using a mismatched bolt pattern can cause vibration, misalignment, or even wheel detachment.
Performance: The wrong fit can affect your vehicle’s handling and braking, especially at high speeds.
Compatibility: Even aftermarket wheels must match your car’s bolt pattern unless adapters are used (which come with their own risks).
Legal & Warranty Issues: Incorrect installations can void warranties or cause issues with roadworthiness inspections.

How to Measure Your Auto Wheel Bolt Pattern

If you want to find your car’s auto wheel bolt pattern, there are a few different ways to do it:

1. Check the Owner’s Manual

This is the easiest and most accurate method. Your car’s bolt pattern is usually listed in the specs section.

2. Look Online

Many websites allow you to enter your car’s make, model, and year to find the correct bolt pattern. Reliable sites include Wheel-Size.com or manufacturer websites.

3. Measure It Yourself

To do this:

Count the number of lug holes (e.g., 5)
Measure the diameter:
- For even-numbered lugs (4, 6, 8), measure from the center of one lug hole to the center of the one directly across.
- For odd-numbered lugs (like 5), measure from the centre of one lug to the outer edge of the opposite lug (not the center-to-center distance).

Use a millimetre ruler or caliper for better accuracy.

Common Auto Wheel Bolt Patterns

Some of the most commonly used auto wheel bolt patterns in North America include:

Bolt Pattern	Common Vehicle Types
4×100	Honda Civic, Mazda Miata, Toyota Corolla
5×114.3	Ford Mustang, Nissan Altima, Toyota Camry
6×139.7	Toyota Tacoma, Chevy Silverado, Ford F-150
8×165.1	Heavy-duty trucks (older Chevy/GMC HD models)

It’s important to note that even cars of the same make and model may have different patterns depending on trim level or year. Always double-check.

Can You Use Wheel Adapters?

If you fall in love with a set of wheels that doesn’t match your vehicle’s auto wheel bolt pattern, you might consider using wheel adapters or conversion spacers. These devices allow wheels with different bolt patterns to be installed—but they come with caveats:

They add weight and may change your wheel offset
They require high-quality installation
They may not be street-legal in all regions
Improper use can lead to mechanical failure

If you choose this route, consult a professional and opt for high-quality, hub-centric adapters.

Tips for Buying New Wheels

When shopping for new wheels, always match these four key measurements:

Bolt Pattern
Center Bore – The size of the hole in the center of the wheel that fits over the hub
Wheel Offset – How far in or out the wheel sits compared to the hub
Wheel Diameter and Width – Ensures proper tire fitment and handling

Always confirm compatibility with your vehicle before purchasing. If buying from a shop, provide them with your vehicle’s full details.

Final Thoughts

Understanding your auto wheel bolt pattern is a simple but essential part of owning, maintaining, or modifying a vehicle. It ensures that your wheels fit safely and function as they should, protecting you and your passengers on the road.

So the next time you’re shopping for wheels—whether it’s for style, performance, or replacement—take a moment to look up or measure your auto wheel bolt pattern. It’s a small step that goes a long way in keeping your ride smooth, safe, and secure.
